ROXAR

Roxar’s history of value-adding technology innovation is a cornerstone of our success. The company is instrumental in developing technologies such as 3D gelological modelling, multiphase metering, sand monitoring and real-time geosteering. We collaborate with our customers to jointly develop technology for specific industry products bringing the products of tomorrow to the market today. Innovative Roxar solutions both enlighten and empower customers with reliable, actionable data within the O&G value chain. By providing a continuous information flow, Roxar products consistently guide customers to make more informed decisions about production and integrity. This results in maximized performance throughout the lifecycle of the well, along with increased profitability.

ROXAR 2600 MULTIPHASES FLOW METERS

DESCRIPTION

The Roxar 2600 Multiphase Flow Meters (MPFM) accurately characterize flow regimes and provide critical information on a well’s production capabilities. Built on a scalable technology platform, the advanced meter’s signal processing and field electronics provide sensitive measurements and a comprehensive mapping of flow. Employ this modular meter to improve production optimization, flow assurance and well testing, while meeting all field conditions and cost requirements.

FEATURES

>> Accurately characterize flow with advanced signal processing and field electronics
>> Improve measurement certainty with identification and measurement of non-symmetrical flow in varying flow regimes
>> Significantly reduced costs with a field proven measurement principle
>> Compact and light-weight solution
>> Easy to install with low power consumption
>> Flexibility enabled by a modular design


ROXAR SUBSEA WETGAS METERS

DESCRIPTION

Roxar Subsea Wetgas meters provide highly accurate water, gas and condensate flow rates, reducing risk and improving flow assurance. The advanced meters deliver unparalleled water sensitivity, accuracy and rapid response for reliable production measurement.These include the industry’s first built-in salinity-measurement system, which provides information vital to protecting subsea well and pipeline integrity and supporting metering/allocation strategies in gas and gas condensate fields.

FEATURES

>> Maximize accuracy with multivariate analysis and three-phase measurement based on microwave and gamma densitometer
>> Know if formation water is entering the flow with the industry’s first dedicated online salinity-measurement system
>> Detect changes as little as 0.2 ppm in water content of the flowing well – sensitivity never before achieved
>> Act immediately to protect subsea system integrity with measurement speeds of 20 times per second
>> Simplify installation and integration with a compact design
>> Realize maximum performance over the field’s lifetime with field-proven reliability and full redundancy
>> Ensure valid readings with pressure, volume and temperature (PVT) measurements independent of water fractions

DOWNLOAD DOCUMENT

MICRO MOTION 5700 FIELD-MOUNT TRANSMITTER

DESCRIPTION

Delivering the best in measurement technology and unparalleled support, the 5700 transmitter's intuitive design ensures measurement confidence, valuable process insight and productivity through simplified solutions. Data historian feature captures rich information about process events, fluid quality, and measurement stability – over long and short periods of time. Zero Verification tool provides confidence in the meter zero and analyzes process conditions to indicate potential issues for re-zeroing.

FEATURES

>> Perform fast, flexible installations with a native Ethernet architecture and connections
>> Achieve the best response in the most challenging applications, such as meter proving, filling and dosing and batching
>> Capture short- and long-term insight about process events, fluid quality and measurement stability with a data historian
>> Monitor more process measurements with availability of up to 5 fully configurable I/O channels
>> Check meter health in fewer than 90 seconds with Smart Meter Verification
>> Easily confirm calibration when it’s time to re-zero the meter with zero verification
>> Improve process control with real-time indication of multi-phase flow events
>> Minimize the time and expertise needed to install and operate the flow meter

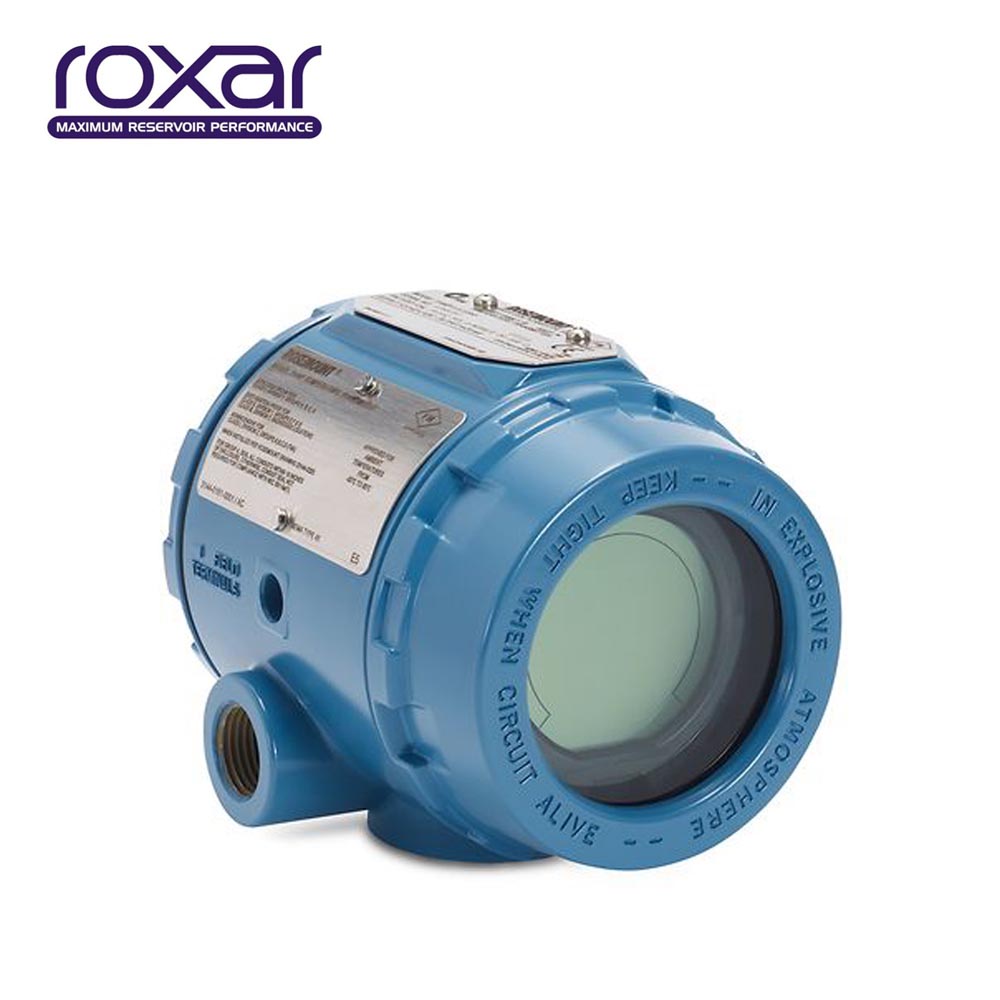

ROSEMOUNT™ 3144P TEMPERATURE TRANSMITTER

DESCRIPTION

The Rosemount 3144P Temperature Transmitter provides industry-leading accuracy, stability and reliability for your temperature measurements. It features a dual-compartment housing to ensure reliability and advanced diagnostics to keep your measurement point up and running. When combined with Rosemount X-well™ Technology and the Rosemount 0085 Pipe Clamp sensor, this transmitter can provide accurate measurement of process temperature, eliminating the need for a thermowell or process penetration.

FEATURES

>> Industry-leading accuracy and reliability for best performance in critical control and safety applications
>> Transmitter-sensor matching improves measurement accuracy up to 75%
>> 5-year long-term stability extends calibration intervals to reduce trips to the field
>> Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs
>> Dual compartment housing provides superior protection in harsh environments
>> Hot Backup™ capability and sensor drift alert utilizing dual sensors ensure measurement integrity
>> Thermocouple degradation diagnostic monitors thermocouple health to detect degradation before failure
>> Minimum and maximum temperature tracking allows monitoring of temperature extremes for easy troubleshooting
>> Transmitter supports multiple protocols for integration in many host environments across many industries
>> Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting


ROXAR DOWNHOLE WIRELESS SYSTEMS

DESCRIPTION

Roxar Downhole Wireless Systems continuously monitor annulus B temperature and pressure for the subsea well’s lifetime. Comprised of a wireless reader and a wireless PT Transponder, the advanced system improves production and offshore safety, providing early high–pressures warnings, protecting casing integrity and preventing pressure build–up.

FEATURES

>> Real-time temperature and pressure tracking with continuous monitoring and sampling rates as quickly as every second
>> Employ a fully integrated downhole solution that connects to the standard Roxar Integrated Downhole Network (IDN)
>> Can be combined with other instruments (e.g. HS Gauge, Intelligent Multistage Completion Network) on one Roxar IDN
>> Rely on a high-integrity design with no case penetrations
>> Simplify configuration with the electronic wireless transmission of power and data, requiring no cables
>> Minimize downtime with power from the Roxar IDN – no batteries required
>> Full bore, no penetrations


ROXAR™ CORRLOG

DESCRIPTION

The Roxar CorrLog transmitter generates highly accurate in-line corrosion probes readings. Roxar CorrLog offers off-line or wired on-line real time corrosion data. When combined with other Emerson products, it provides highly efficient data management capabilities for an integrated, integrity and process monitoring solution. The result for the operator is efficient corrosion control, pipeline integrity and extended asset life.

FEATURES

>> Best in class resolution and measurement sensitivity
>> Combines ER, LPR and galvanic probe functions in one instrument
>> Can read probes from most known vendors
>> Robust design, proven field performance
>> Configuration flexibility, upgrade options
>> Through field design and monitoring performance, contributes to improved safety, field integrity and extended equipment life


ROXAR MATRIX DOWNHOLE WIRELESS INTERFACE™

DESCRIPTION

The Roxar Matrix Downhole Wireless Interface is installed as part of a permanent downhole monitoring system. It allows for communication with wireless instruments provided by Metrol Technology and located at the reservoir sand face. The pressure and flow data leads to efficient well and reservoir management, while the Roxar HS Gauge provides a life of the well permanent monitoring system.

FEATURES

>> Enables wireless communication with Metrol instruments at reservoir sand faces
>> Connects to the standard Roxar Integrated Downhole Network (IDN) cable
>> Simple communications and fully integrated communications solution
>> Interfaces with pressure gauges, valves and temperature arrays from Metrol Technology
>> Provides a HS gauge permanent downhole monitoring system for the life of the well


ROXAR SANDLOG AND CORRLOG INSTRUMENTS

DESCRIPTION

Roxar SandLog & CorrLog Instruments – wired or wireless – accurately monitor sand and corrosion, extending equipment life and increasing production. Based on intrusive sensors installed into pipes or vessels through an access fittings system, these flexible transmitters combine with the probe functions for superior corrosion and sand-erosion accuracy. Implement as part of a comprehensive asset-management system and realize increased flexibility, reduced costs and improved accuracy.

FEATURES

>> Achieve increased accuracy, decreased risk of signal loss and better data and trending with highly sensitive sensors
>> Increase positioning flexibility, optimize signal routing and simplify maintenance and replacement with a 20-meter cable
>> Significantly reduce installation costs and effectively monitor previously inaccessible areas with wireless connectivity
>> Integrate with Emerson’s Smart Wireless system, PlantWeb and Roxar Fieldwatch for a complete asset-management system
>> Maximize investment and flexibility with the ability to read other manufacturers’ probes


ROXAR™ SUBSEA SENCORR SAND EROSION SENSORS (DISCONTINUED)

DESCRIPTION

The Roxar™ Subsea SenCorr Sand Erosion Sensors measure metal loss caused by the impact of sand particles flowing in the production line. The intrusive sensors accurately determine the short and long-term effects of damage caused by sand in order to maintain asset integrity and provide vital input to flow assurance strategies. Customizable options can incorporate redundant sand erosion, pressure and temperature sensing technologies for additional process insights.

FEATURES

>> Four independent sand erosion elements provide redundancy and cover the full diameter of the pipe section for added reliability.
>> Erosion is measured with high accuracy and rapid response to sand production.
>> Erosion sensors are independent of changing process temperatures resulting in improved accuracy and reliability.
>> Customizable options can incorporate additional pressure and temperature sensing technologies for additional process insights.
>> Combine with Roxar Subsea Acoustic Sand Monitors to confirm the occurrence and severity of a sand event, giving operators visibility of sand production.
>> Connect to Roxar Fieldwatch monitoring software for in-depth analysis and investigation of process changes.


ROXAR™ SUBSEA SENCORR PRESSURE AND TEMPERATURE SENSORS (DISCONTINUED)

DESCRIPTION

The Roxar™ Subsea SenCorr Pressure and Temperature Sensors are based on piezoresistive measurement technology allowing them to maintain accuracy and stability in fluctuating temperature-and high-pressure conditions. Fully-redundant PTPT configurations provide reliable long term production measurements in harsh subsea environments. This sensor measures pressures up to 15000 psi (1034 bar) and is available with industry-standard communication protocols.

FEATURES

>> Operates at pressures up to 15000 psi (1034 bar) while submerged at depths up to 10000 ft (3000 m)
>> Available with fully-redundant pressure and temperature measurement capability for enhanced reliability
>> Piezo-resistive sensor in an oil-filled cavity provides industry leading accuracy and stability
>> Customizable options can incorporate sand erosion and corrosion sensing technologies for additional process insights
>> Connect to Roxar Fieldwatch monitoring software for in-depth analysis and investigation of process changes


ROXAR™ SUBSEA ACOUSTIC PIG DETECTORS (DISCONTINUED)

DESCRIPTION

Roxar™ Subsea Acoustic Pig Detectors are intelligent, non-intrusive devices that detect and monitor the acoustic noise generated by Pipeline Inspection Gauges (PIGs) in water, oil, gas or multiphase pipeline flows. These detectors give operators greater knowledge of what is happening in their pipelines which leads to increased pipeline integrity and cost savings.

FEATURES

>> No intrusion to the pipe and compact design means easy and safe installation and minimal maintenance.
>> Detectors indicate the amount of pipeline debris pushed ahead by a cleaning PIG, providing more information on the pipeline and greater integrity.
>> ROV retrievable and Non-retrievable options available for added flexibility.
>> No process wetted parts for lower installation and maintenance costs.
>> Detectors come mounted in fixed pre-installed clamp assemblies for simplified installation and retrieval.
>> Connect to Roxar Fieldwatch monitoring software for in-depth analysis and investigation of process changes


ROXAR™ CORRLOG WIRELESS

DESCRIPTION

The Roxar CorrLog Wireless transmitter generates highly accurate corrosion data When combined with other Emerson products, it provides highly efficient data management capabilities for an integrated, integrity and process monitoring solution. The transmitter is part of an integrated WirelessHART solution, where data is forwarded to Roxar Fieldwatch or other software. The transmitters uses a standard WirelessHART communication protocol – IEC 62591 – that makes on-line upgrades affordable and add value to information generated through sensitive and fast responding monitoring sensors.

FEATURES

>> Best in class resolution and measurement sensitivity
>> Combines ER and LPR functions in one instrument
>> Can read probes from most common vendors
>> Up to 20 meters probe cable allows for flexibility in convenient positioning for maintenance and radio signals
>> Flexibility in data formats and data management

DOWNLOAD DOCUMENT

ROXAR™ RETRACTOR TOOLS

DESCRIPTION

The Roxar Retractor Tool allows for safe and convenient retrieval and installation of the Roxar range of Retractable Probes and Coupon Holders in low pressure application pipe lines. The tool is easily attached to the retractable probe or coupon assembly and removed again after use. The result is easy and convenient retrival of corrosion probes and coupons while maintaining safety at your plant.

FEATURES

>> Ensures safe installation and replacement of retractable probes and coupons in low pressure environments
>> The retractor tool is very light weight
>> The retractor tool kit comes in a convenient transportation case
>> Easy installation and easy to use
>> The retractor tool is manufactured of corrosion resistant materials

DOWNLOAD DOCUMENT
