CLYDEUNION PUMPS CUP-BB1

DESCRIPTION

The ClydeUnion Pumps CUP-BB1 range are heavy duty, axially split single and two stage designs engineered to maximize efficiency, provide high reliability, and offer the widest performance flexibility over the pumps life-cycle. From short term to medium term adjustments to full hydraulic re-rates, the CUP-BB1 features are carefully selected to meet our customers needs. Typically a combination of features such as volute insert designs, lip chipping, impeller blade and tip modifications, and varying capacity impellers, can be used to provide the highest versatility of pump operation.

TECHNICAL DATA

>> Capacity: up to 15,000 m³/hr and 66,000 USgpm
>> Delivery head: up to 1,000 m and 3,300 ft
>> Temperature: up to 180 °C / 350 °F
>> Speeds: up to 6,000 rpm
>> Flange drilling: ANSI or BS

APPLICATIONS

>> Pipeline
>> Condensate booster
>> Crude oil and hydrocarbons handling
>> Gas treatment
>> Nuclear & Conventional power
>> Desalination
>> Water distribution
>> Utility duties for process industries

DOWNLOAD DOCUMENT

CLYDEUNION PUMPS CUP-BB2

DESCRIPTION

The ClydeUnion Pumps CUP-BB2 is a heavy duty, horizontal, single or two stage, radially split, between bearings, double suction pump, top-top or side-side suction and discharge connections. The CUP-BB2 is designed and manufactured to the latest edition of API 610.

The CUP-BB2 pumps are employed for many oil & gas, desalination, power, and general industrial applications. Stringent API noise and vibration limits are met due to a rigid pump body with 360 degrees bearing support and heavy centerline mounting. Reliable operation at elevated temperatures is ensured due to a number of cooling methodologies complementing inherently cool running bearing modules. ClydeUnion Pumps legacy brands including HOL, KSMK, DB21, DB22 and H-OB provide the industry with a very comprehensive hydraulic coverage.

TECHNICAL DATA

>> Capacity: up to 3,500 m³/hr and 15,410 USgpm
>> Delivery head: up to 650 m and 2,300 ft
>> Temperature: up to 427 °C / 800 °F
>> Speeds: up to 3,600 rpm
>> Flange drilling: ANSI or BS

APPLICATIONS

>> Refinery processes
>> Booster
>> Boiler feed booster
>> Upstream processes
>> Gas processing
>> Petrochemical
>> Nuclear/Conventional power

DOWNLOAD DOCUMENT

CLYDEUNION PUMPS CUP-BB3

DESCRIPTION

The ClydeUnion Pumps CUP-BB3 pump is a heavy duty axial split case horizontal, pump with opposing impellers with either single or double suction first stage impeller pumps. The CUP-BB3 pumps comply with the latest edition of API 610 and API 682 standards and are specifically designed for heavy duty, medium and high pressure applications.

The ClydeUnion Pumps CUP-BB3 flexibility of design allows the pump to be equally acceptable over a wide range of duties varying from standard water, oil and chemical applications to advanced water flood and boiler feed applications. ClydeUnion Pumps legacy brands including DB34, DVMX, H-FH and class “M” provide the industry with a very comprehensive hydraulic coverage.

TECHNICAL DATA

>> Capacity: up to 3,000 m³/hr and 12,000 USgpm
>> Delivery head: up to 3,350 m and 11,000 ft
>> Speeds: up to 6,500 rpm
>> Flange drilling: ANSI or BS

APPLICATIONS

>> Crude oil and product pipeline
>> Sea water injection
>> Refining charge
>> Desalination – high pressure reverse osmosis
>> Boiler feed
>> Produced water injection
>> Metals high pressure descale

DOWNLOAD DOCUMENT

CLYDEUNION PUMPS SWALLOWGLIDE

DESCRIPTION

The ClydeUnion Pumps Swallowglide is a solids handling, end suction pump, specifically designed for sewage, effluent and screened sewage. Robust design and features developed over years of running experience make the CydeUnion Pumps Swallowglide a highly reliable pump with hundreds of installations globally. The latest modular range was designed for optimum efficiency with multi-blade impellers suitable for screened sewage and downstream effluents and sludges.

TECHNICAL DATA

>> Capacity: up to 30,000 m³/hr and 130,000 USgpm
>> Delivery head: up to 130 m and 430 ft
>> Temperature: up to 80 °C / 180 °F
>> Speeds: up to 1,500 rpm
>> Flange drilling: ANSI or BS

APPLICATIONS

>> Screened sewage
>> Sewage sludge
>> Storm water
>> Industrial effluents
>> Raw water
>> Dirty water

DOWNLOAD DOCUMENT

CLYDEUNION PUMPS CUP-OH3

DESCRIPTION

The ClydeUnion Pumps CUP-OH3 model VLK-BB is an advanced design Single stage, vertical, in-Line bearing bracketed centrifugal pump with exceptional flexibility and versatility to meet the requirements of a wide variety of pumping applications. The unit is ruggedly designed and manufactured to the latest API 610 and API 682 standards for minimum maintenance and heavy-duty requirements for general industry, power, desalination and oil & gas applications. The CUP-OH3 is a back pull-out design that allows the complete rotating assembly to be removed without disturbing the suction or discharge pipework.

TECHNICAL DATA

>> Capacity: up to 1,365 m³/hr and 6,000 USgpm
>> Delivery head: up to 305 m and 1,000 ft
>> Temperature: up to 370 °C / 700 °F
>> Speeds: up to 3,600 rpm
>> Flange drilling: ANSI or BS

APPLICATIONS

>> Petroleum/Refinery
>> Gas processing
>> Offshore installation
>> Desalination
>> Petrochemical
>> Conventional power
>> Jet fuelling systems

DOWNLOAD DOCUMENT

CLYDEUNION PUMPS RECIPROCATING POWER

DESCRIPTION

The ClydeUnion Pumps reciprocating power pumps are designed with exceptional versatility to efficiently meet the requirements of a wide variety of pumping applications. These units are ruggedly designed for minimum maintenance and to meet the heavy-duty requirements of continuous duty operation in general industry as well as API 674 services.

These units are driven via electric motors or diesel engines through V-belt or gear reduction. Stuffing boxes are specifically designed for applications to maximize packing life and minimize maintenance. Equipment can be packaged to meet the most stringent requirements of API 674.

TECHNICAL DATA

>> Capacity: up to 146 USgpm and 645 m3/hr
>> Delivery head: up to 690 ft and 10,000 m
>> Temperature: up to 177°F / 350°C
>> Speeds: up to 290 rpm
>> Flange drilling: ANSI or BS

APPLICATIONS

>> Blow out preventors
>> Subsea controls
>> Amine & glycol circulation
>> Desalination high pressure feed
>> Injection (chemical, saltwater, lubrication)
>> Hydrostatic testing
>> Hydraulic systems
>> General industry services


CLYDEUNION PUMPS CUP-BB5HP

DESCRIPTION

The ClydeUnion Pumps CUP-BB5HP encompasses heavy duty, radially split diffuser type, multi-stage pumps available in two configurations: inline or back-to-back impeller arrangements. Both of which are designed as engineered-to-order solutions and manufactured to the latest edition of API 610 and API 682. The full ClydeUnion Pumps CUP-BB5HP range offers proven design history, evolving from our legacy OK and HMBS machines to provide the industry with a very comprehensive hydraulic coverage, and optimum efficiency levels.

TECHNICAL DATA

>> Capacity: up to 2,800 m³/hr and 12,330 USgpm
>> Delivery head: up to 4,100 m and 13,450 ft
>> Temperature: up to 180 °C / 350 °F
>> Speeds: up to 6,600 rpm
>> Flange drilling: ANSI or BS

APPLICATIONS

>> Produced water injection
>> Seawater injection
>> Flowline displacement
>> Main oil lines

DOWNLOAD DOCUMENT

CLYDEUNION PUMPS CUP-OH2

DESCRIPTION

The ClydeUnion Pumps CUP-OH2 pump is a heavy duty, single stage, radially split, overhung, end suction machine, designed and manufactured to the latest edition of API 610. The CUP-OH2 pumps have stringent API noise and vibration limits which are met, due to a rigid pump body with 360 degrees bearing support and heavy centerline mounting. Reliable operation at elevated temperatures is ensured due to a number of cooling methodologies complementing inherently cool running bearing modules. A back pull-out design allows the complete rotating assembly to be removed without disturbing the suction or discharge pipework. ClydeUnion Pumps legacy brands including HHS, DB10, SMK and H-OP provide the industry with a very comprehensive hydraulic coverage.

TECHNICAL DATA

>> Capacity: up to 1,700 m³/hr and 7,500 USgpm
>> Delivery head: up to 350 m and 1,148 ft
>> Temperature: up to 426 °C / 800 °F
>> Speeds: up to 4,000 rpm
>> Flange drilling: ANSI or BS

APPLICATIONS

>> Petroleum/Refinery
>> Gas processing
>> Offshore installation
>> Desalination
>> Petrochemical
>> Nuclear/Conventional power
>> Jet fuelling systems

DOWNLOAD DOCUMENT

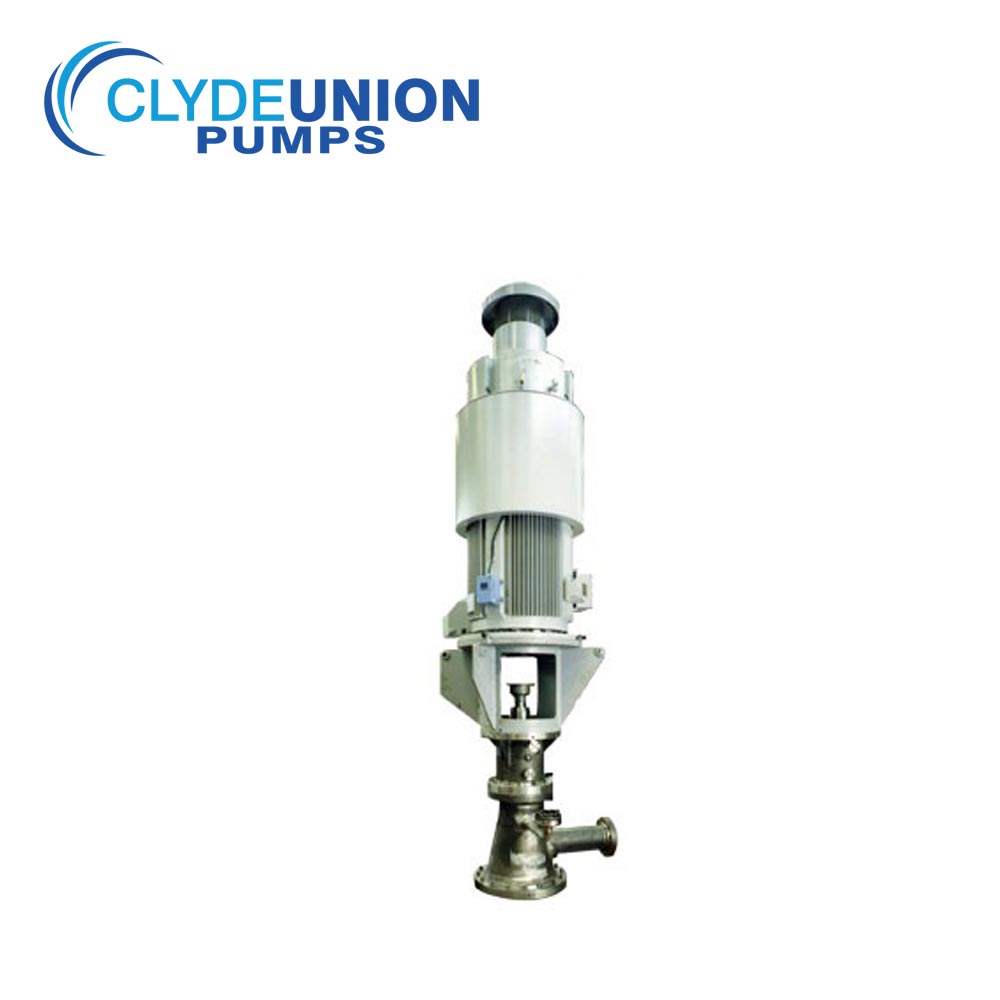

CLYDEUNION PUMPS DB62c

DESCRIPTION

The ClydeUnion Pumps DB62c is a vertical turbine multi-stage, heavy-duty pump designed to the latest edition of API 610 and API 682 standards. It is designed for cryogenic applications for liquefied gas transport. ClydeUnion Pumps vertical shaft pumps are engineered with a barrel (suction can) and a special “C” Type head gear designed with double mechanical seals to effectively seal NGL, LNG, LPG and other low temperature fluids.

TECHNICAL DATA

>> Capacity: up to 2,500 m³/hr / 11,000 USgpm
>> Delivery head: up to 3,000 m / 9,842 ft
>> Temperature: down to -200 °C / -328 °F
>> Speeds: up to 3,600 rpm
>> Flange drilling: ANSI or BS

APPLICATIONS

>> Cryogenic Hydrocarbons
>> LNG
>> LPG
>> NGL

DOWNLOAD DOCUMENT

CLYDEUNION PUMPS CUP-FWP

DESCRIPTION

Reactor feed water pumps are designed and constructed to withstand specific site environmental conditions and operating criteria. This specific feedwater pump is an ASME III class 2 or 3 pump, which has stiff shafts with generous internal clearances and a full cartridge design. Benefits of the ClydeUnion Pumps Single Stage Feedwater Pump are dry running, through life efficiency and full cartridge feature.

TECHNICAL DATA

>> Capacity: up to 6,000 m³/hr / 26,400 USgpm
>> Delivery head: up to 1,200 m / 3,990 ft
>> Temperature: up to 250 °C / 480 °F
>> Speeds: up to 7,000 rpm

APPLICATIONS

>> Reactor feed
>> Safety related

DOWNLOAD DOCUMENT
