Gas and Liquid Sampling Solutions

YZ Systems provides advanced gas and liquid sampling solutions designed to collect representative samples for accurate analysis and reliable process monitoring. Backed by decades of industry experience, our sampling systems deliver precision, consistency, and dependable performance in demanding Oil & Gas and industrial environments. Engineered for operational efficiency and reliability, YZ Systems offers sampling technologies tailored to meet specific process requirements, supporting accurate measurement, product quality control, and informed operational decisions. For more information, contact us at 02-168-3193-5, Hotline: 091-187-1111 or Line ID: @multiphase

YZ Systems Cyclone Meter Lubrication System
Request a Quote

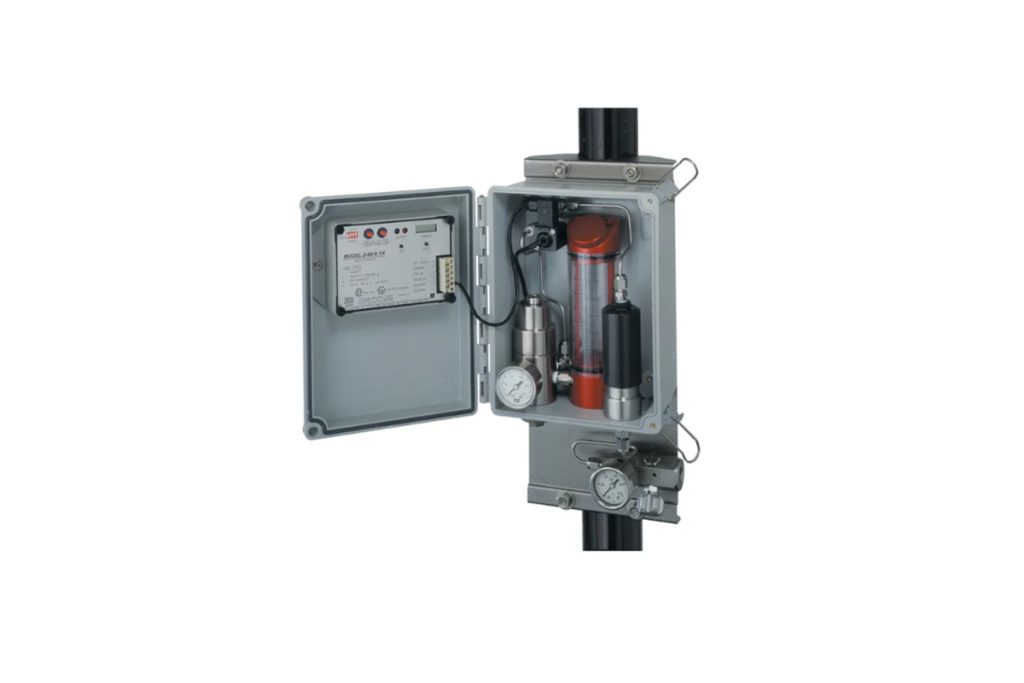

Cyclone Meter Lubrication System

The Cyclone meter lubrication system injects turbine meter lubricant to enable unrestricted movement of the turbine and to maintain measurement accuracy. Mounted to a pipeline, the system uses a pneumatically-operated positive displacement pump, a controller, a filter/regulator, and a solenoid valve to deliver injection. Capable of accepting pulses directly from a meter, index pulser, electronic corrector, or flow computer, the Cyclone system can operate in proportional-to-flow or time-based injection modes.

Features

  • Provides systematic lubrication
  • Versatile controller operates time-based or flow-based
  • Durable NEMA 4X fiberglass reinforced polyester enclosed to protect from the elements
  • On board LCD stroke & LED battery indicator
  • Adjustable filter/regulator
  • On board 6 oz. oil reservoir
  • Long life potted electronics
  • Intrinsically safe for Class I, Group C, D; FM approved, and CSA & Cenelec Certified
  • Convenient termination block for pulse and differential pressure switch input

DOWNLOAD DATASHEET

Request a Quote

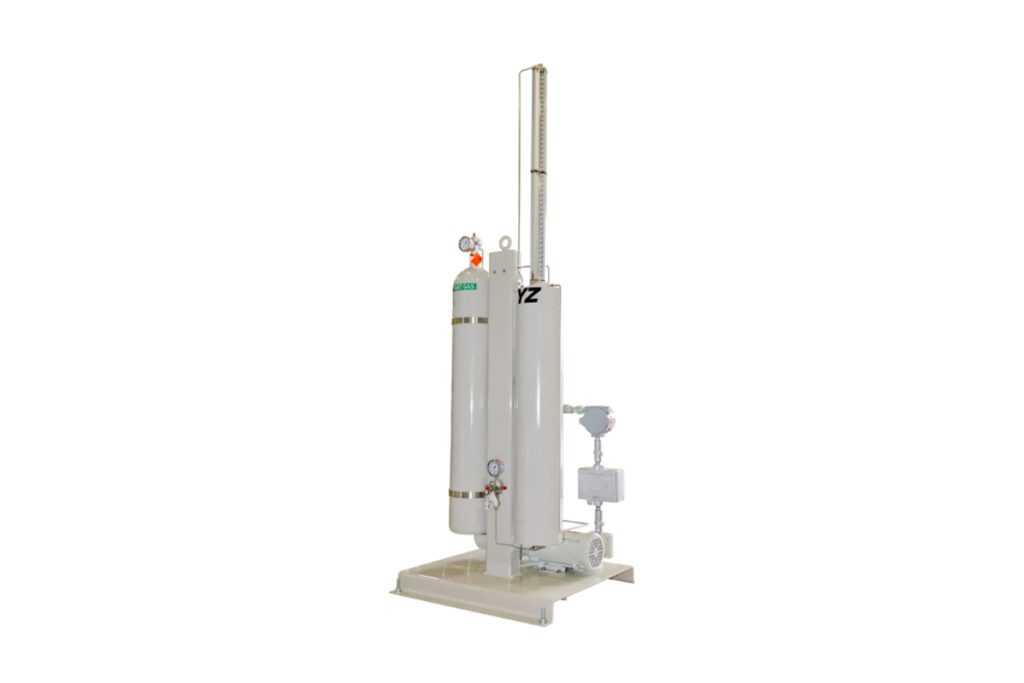

Light Liquid Sampler Systems

Light liquid sampling systems are designed to sample light liquid hydrocarbons such as propane, butane and other single-phase, refined products. Our innovative design captures thousands of individual samples that are combined to develop a representative composite sample of the flowing pipeline. All equipment, except probe mounted sample pumps, are mounted on a simple skid or a multi-vessel system. In addition, the system is available with remote communications to meet process needs. With 60 years of experience, the system’s quality is field-proven, delivering a reliable representative sample month-after-month, year-after-year.

Features

  • Positive displacement pump with integral balance features
  • Sample accumulator with power mixer to deliver accurate injection for the application
  • Electronic controller for proportional-to-flow operation
  • Factory assembled and skid or cabinet mounted for ease of installation
  • Available with a variety of control options to meet process needs

DOWNLOAD DATASHEET

Request a Quote

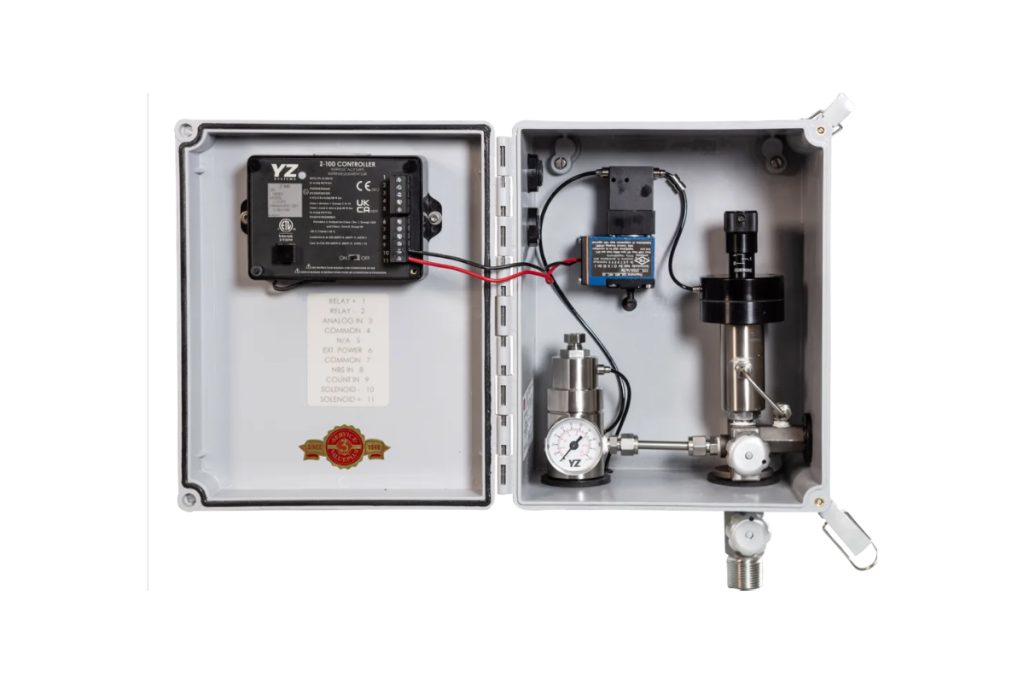

DynaPak Sampling Systems

Designed to deliver a representative sample of natural gas or light liquids the DynaPak sampling system has become the industry standard in simplicity and reliability. Whether sampling condensate on an offshore platform or natural gas on shore you can have confidence the Dynapak will provide years of dependable service.

Features

  • Operation
    • Proportional to flow
    • Proportional to time
  • Intrinsically safe
  • Battery operated
  • Simple design

DOWNLOAD DATASHEET
