Industrial Immersion Heaters
Chromalox Industrial Immersion Heaters provide highly efficient direct heating for a wide range of fluids, from clean and process water to corrosive solutions and highly viscous oils. Designed for demanding industrial processes, they are suitable for tank heating, high-pressure systems, hazardous locations, and other specialized applications. Available in screw plug, flanged, welded, and over-the-side configurations, Chromalox immersion heaters offer flexible installation and precise temperature control to meet specific process requirements. A broad range of standard models is available, along with custom-engineered solutions for specialized industrial heating applications. For more information, contact us at 02-168-3193-5, Hotline: 091-187-1111 or Line ID: @multiphase

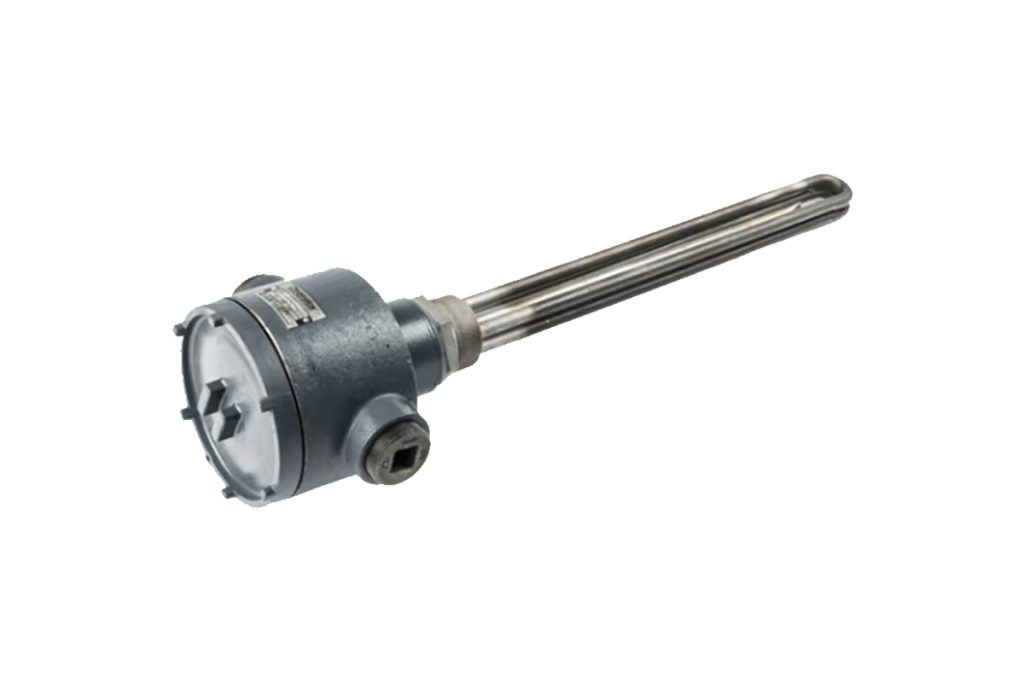

Clean Water Screw Plug Immersion Heaters
Screw plug immersion heaters consist of tubular elements in a threaded hex plug. Some models are provided with a thermowell for the temperature control sensor and a variety of electrical enclosures for electrical connections. They screw directly through threaded openings in tank walls to heat liquids, viscous fluids, forced air, and gases by direct contact. A patented 360º rotatable housing is available on most models to facilitate easy conduit connections.
MODELs
-
MT/EMT Clean Water Applications: Screw Plug Immersion heaters consisting of hairpin bent copper tubular elements brazed or welded into a screw plug, and provided with terminal enclosures for electrical connections. Chromalox MT industrial heaters use direct immersion for energy efficiency and are well suited for clean water applications.
-
ARMT/ARTM Clean Water Applications: Screw Plug Immersion heaters consisting of hairpin bent copper tubular elements brazed or welded into a screw plug, integral thermostat, and provided with terminal enclosures for electrical connections. Chromalox ARMT industrial heaters use direct immersion for energy efficiency and are well suited for clean water applications.
-
CH-SD Clean Water: Screw Plug Immersion heaters consist of hairpin bent tubular elements brazed or welded into a screw plug, and provided with terminal enclosures for electrical connections. Chromalox CH-SD industrial heaters use direct immersion for energy efficiency, and are well suited for clean water applications.

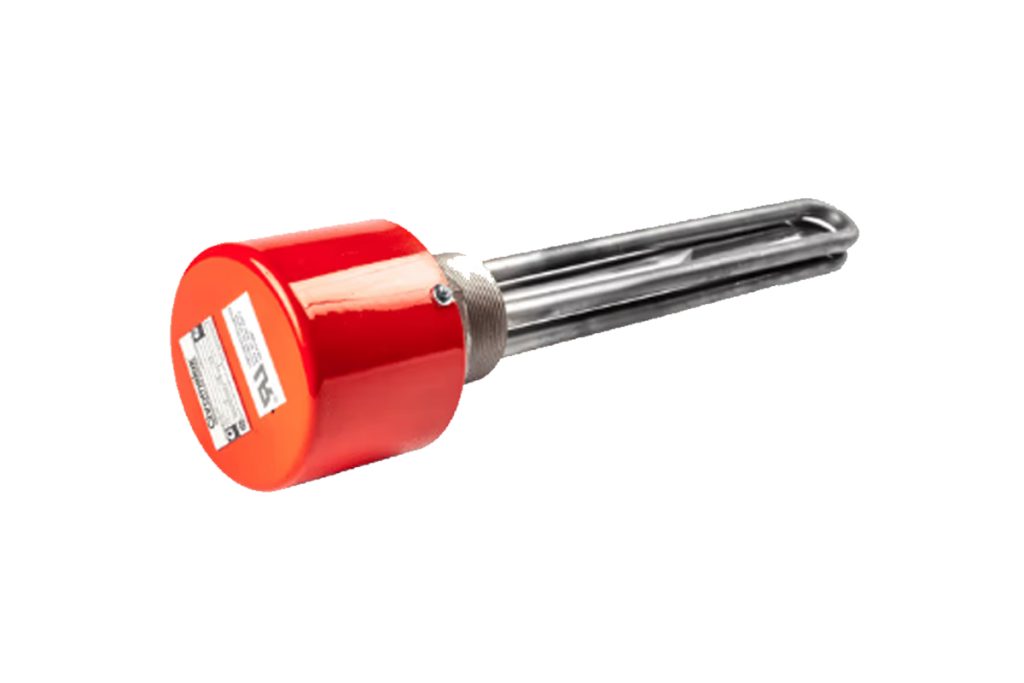

Oil & Non-Corrosive Viscous Fluid Screwplug Heaters
Screw Plug Immersion heaters consist of hairpin bent tubular elements brazed or welded into a screw plug, and provided with terminal enclosures for electrical connections. Chromalox MTO industrial heaters use direct immersion for energy efficiency, and are well suited for light weight oil applications.
MODELS
-
MTO & EMTO Light, Medium, & Heavy Oil: Screw Plug Immersion heaters consisting of hairpin bent tubular elements brazed or welded into a screw plug, and provided with terminal enclosures for electrical connections. Chromalox MTO industrial heaters use direct immersion for energy efficiency, and are well suited for light, medium, and heavy weight oil applications.
-
ARMTO & AREMTO Light, Medium, & Heavy Oil: Screw Plug Immersion heaters consisting of hairpin bent tubular elements brazed or welded into a screw plug, integral thermostat, and provided with terminal enclosures for electrical connections. Chromalox MTO industrial heaters use direct immersion for energy efficiency, and are well suited for light, medium, and heavy weight oil applications.
-
TV, SM, T, F Series Oil Applications: For International markets, Chromalox offers a dedicated Screw Plug immersion product offering. Standard models include TV, SL, FWS, TRHG, FPSM, FPSL, and FPFW. Oil applications can require a wide variety of watt densities to suit the viscosity of a particular application. Chromalox offers standard product ranging for from 1.2 to 3.9 w/cm2 to suit just about any application.

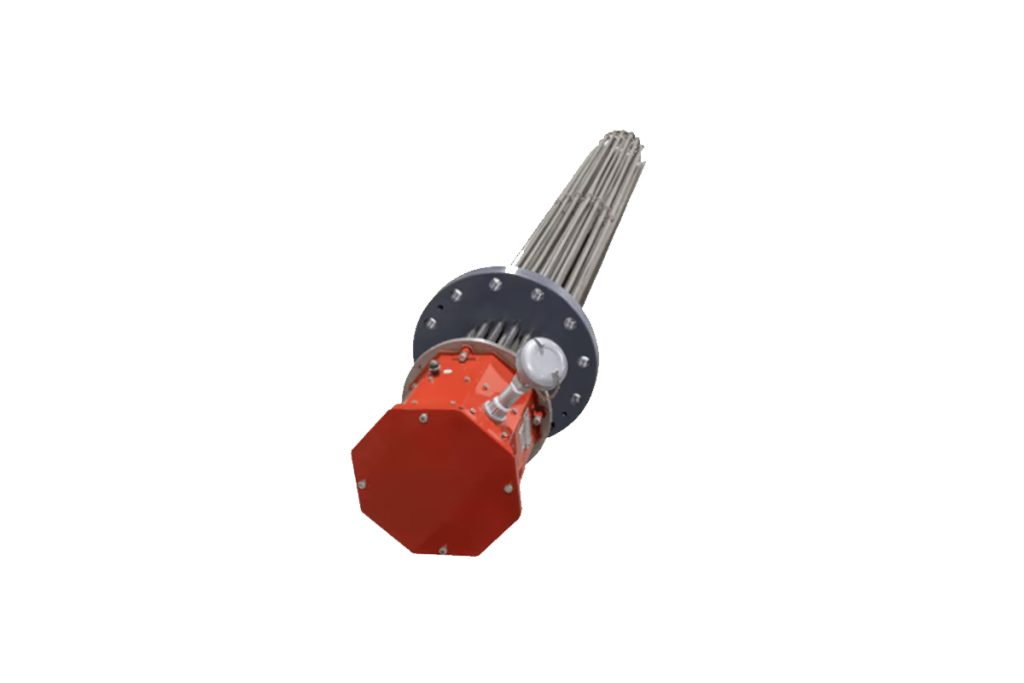

Pick & Ship Flanged Immersion Heaters
Flanged Immersion Heaters are designed for efficient direct heating of liquids and gases in tanks, vessels, and pressurized systems. The heating elements are securely mounted to a flange for easy installation, maintenance, and reliable electrical connection. With a wide selection of flange sizes, power ratings, voltages, terminal enclosures, and sheath materials, these heaters can be configured to meet a broad range of industrial process requirements.
By transferring heat directly into the process medium, Flanged Immersion Heaters provide efficient and precise temperature control for water, oils, heat transfer fluids, corrosive solutions, and process gases. Typical applications include hot water storage tanks, oil preheating, food processing equipment, cleaning and rinsing tanks, heat transfer systems, process air, boiler equipment, and freeze protection.
applications
- Hot Water Storage Tanks
- Warming Equipment
- Preheating All Grades of Oil
- Food Processing Equipment
- Cleaning and Rinsing Tanks
- Heat Transfer Systems
- Process Air Equipment
- Boiler Equipment
- Freeze Protection of Any Fluid
