Open Drain vs. Closed Drain System in Oil & Gas Facilities
Open Drain vs. Closed Drain System in Oil & Gas Facilities
Drainage systems are an essential part of oil and gas facilities, providing a safe and controlled method for collecting and managing liquids generated from process equipment, maintenance activities, washdown operations, and environmental exposure. In general, drainage systems are classified into two main categories: Open Drain Systems and Closed Drain Systems. Although both systems are designed to manage unwanted liquids, they serve different purposes depending on the type of fluid, operating conditions, hydrocarbon content, and safety requirements.
What Is an Open Drain System?
An Open Drain System is generally used to collect liquids from atmospheric or non-pressurized areas. Typical sources include equipment areas, drip trays, bunded areas, washdown water, maintenance drainage, and rainwater from process areas that may potentially be contaminated with hydrocarbons. The collected liquid may be routed through drain channels, catch basins, sumps, oily water treatment systems, or other appropriate treatment facilities before disposal or discharge. The primary objective is to manage surface drainage safely while minimizing uncontrolled hydrocarbon releases and environmental impact.
What Is a Closed Drain System?
A Closed Drain System is designed to safely collect and contain hydrocarbon liquids or process fluids drained from process equipment. These liquids may originate from vessels, separators, scrubbers, filters, pumps, compressors, process piping, and other hydrocarbon-containing equipment during maintenance, shutdown, isolation, or normal drainage operations. Instead of being exposed directly to the atmosphere, the liquid is routed through dedicated closed piping to a Closed Drain Vessel, Closed Drain Drum, or Closed Drain Sump, where it can be safely contained before recovery, treatment, transfer, or controlled disposal.
Key Difference Between Open and Closed Drain Systems
The main difference between an open drain and a closed drain system is the type of liquid being handled and the level of containment required. Open drains are primarily associated with atmospheric surface drainage, while closed drains provide controlled containment for hydrocarbon and process liquids. This separation is important because process fluids may present fire, vapor exposure, personnel safety, and environmental risks if released directly into an atmospheric drainage network. By separating the two systems, oil and gas facilities can manage different liquid streams more effectively while reducing unnecessary hydrocarbon exposure and improving overall drainage safety.
How Does a Closed Drain System Work?
A typical Closed Drain System routes process liquid from equipment through dedicated drain piping into a closed drain vessel or sump. Depending on the process design, vapor generated within the system may be directed to an appropriate vapor handling or flare system, while accumulated liquid is transferred by a Closed Drain Pump to a recovery, treatment, storage, or disposal system. Instrumentation can also be integrated to monitor liquid level, pressure, temperature, and pump operation, allowing the system to operate safely and reliably according to the facility’s control philosophy. A simplified process can be described as: Process Equipment → Closed Drain Piping → Closed Drain Vessel/Sump → Closed Drain Pump → Recovery, Treatment or Disposal System
Key Engineering Considerations
Engineering an effective drainage system requires careful consideration of drainage capacity, fluid composition, pressure, temperature, corrosion, materials of construction, pump performance, instrumentation, hazardous area requirements, and environmental conditions. For closed drain systems in particular, engineers should consider the potential for flashing and vapor generation when liquids are drained from higher-pressure process equipment into a lower-pressure collection system. Pump selection is another important engineering consideration. The selected pump should be evaluated according to the required flow rate, differential head, fluid properties, available NPSH, installation arrangement, materials of construction, and operating philosophy. These factors help ensure that the drainage system can operate safely and reliably throughout the required operating conditions.
Open and Closed Drain Systems for Offshore Applications
Drainage management becomes particularly important in offshore oil and gas facilities, where limited space, harsh environmental conditions, and stringent safety requirements demand compact, reliable, and well-integrated systems. Offshore drain systems may require corrosion-resistant materials, hazardous-area instrumentation, reliable level control, appropriate structural design, and careful integration with the platform’s process, utility, flare, and safety systems. Accessibility for inspection and maintenance should also be considered during package design, particularly where equipment is installed within space-constrained offshore modules.

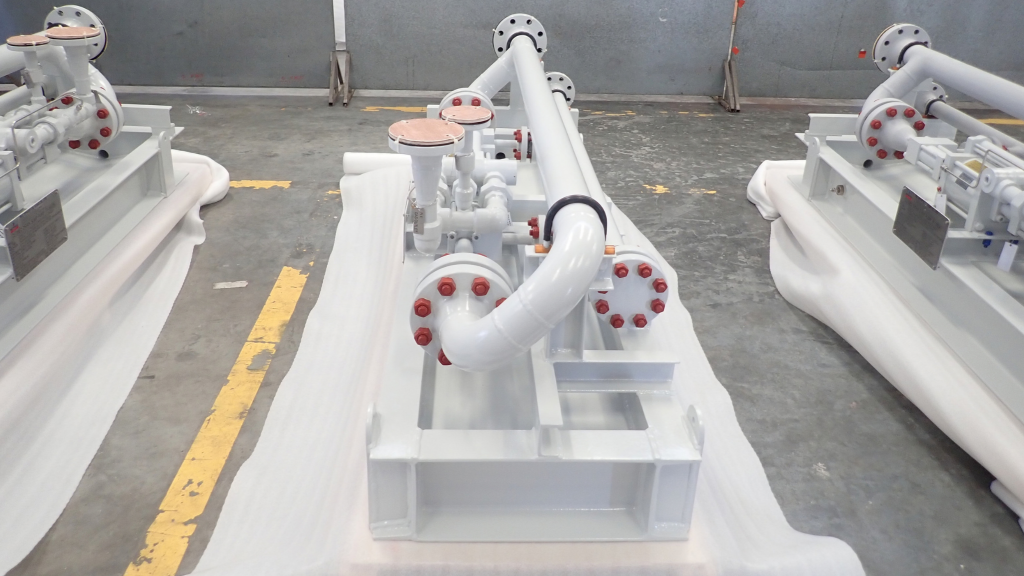

Closed Drain Pump Package
For project-specific requirements, a Closed Drain Pump Package can be developed as an integrated engineered package consisting of pumps, piping, valves, instrumentation, control systems, structural skids, and associated accessories. Engineering activities may include hydraulic evaluation, equipment selection, mechanical and piping design, instrumentation integration, 3D modeling, fabrication, system integration, inspection, testing, Factory Acceptance Testing (FAT), and commissioning support. An integrated package approach can simplify equipment interfaces and provide a complete solution developed around the actual process and operating requirements of the project.
Multiphase Oil & Gas Co., Ltd. provides engineered package solutions for Oil & Gas, Petrochemical, Offshore, and Industrial applications, integrating engineering, equipment selection, fabrication, system integration, testing, and commissioning support according to project-specific requirements and applicable engineering standards. Our engineering capabilities include Closed Drain Pump Packages, Engineering Pump Packages, Chemical Injection Packages, Gas/Air Compressor Packages, Gas & Liquid Treatment Packages, Pig Trap Vessels, and other customized engineered solutions. With engineering and system integration capabilities, Multiphase Oil & Gas focuses on delivering solutions designed around safety, reliability, maintainability, and long-term operational performance.
